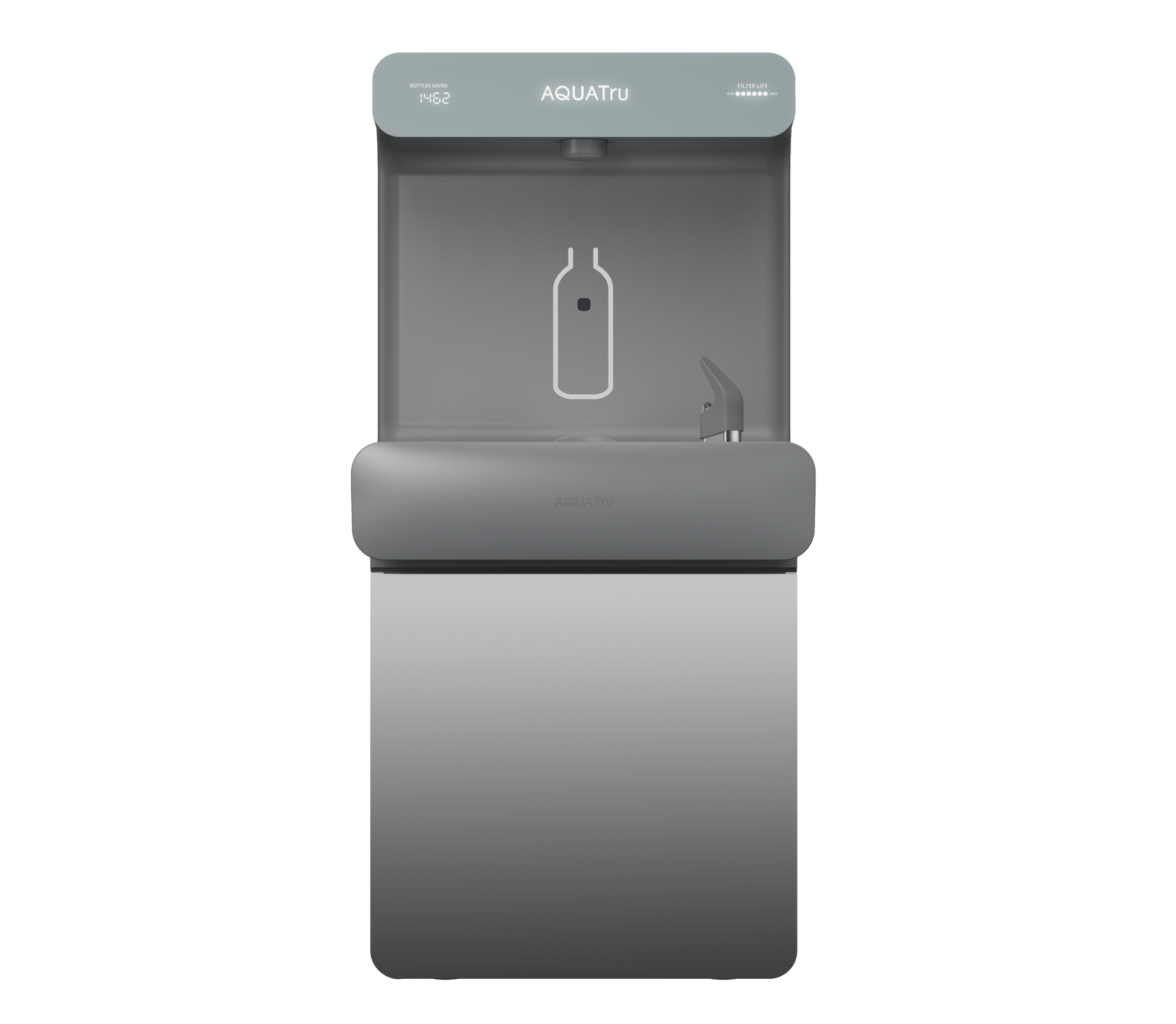

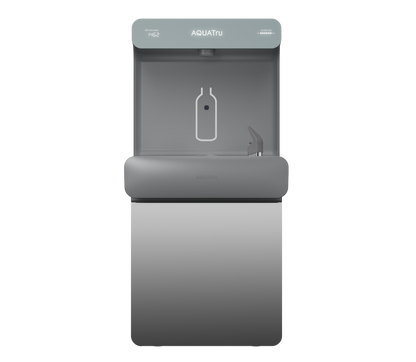

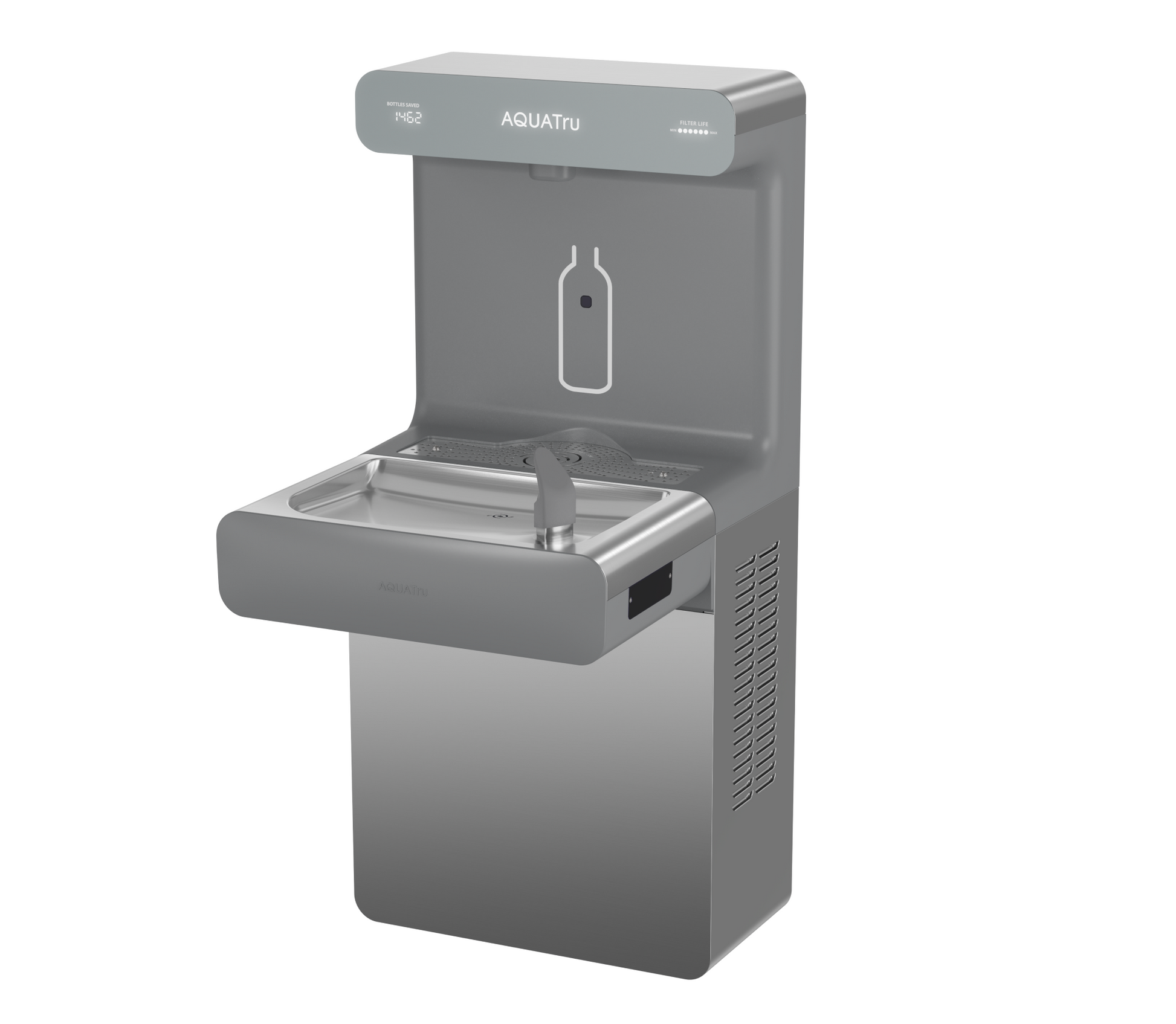

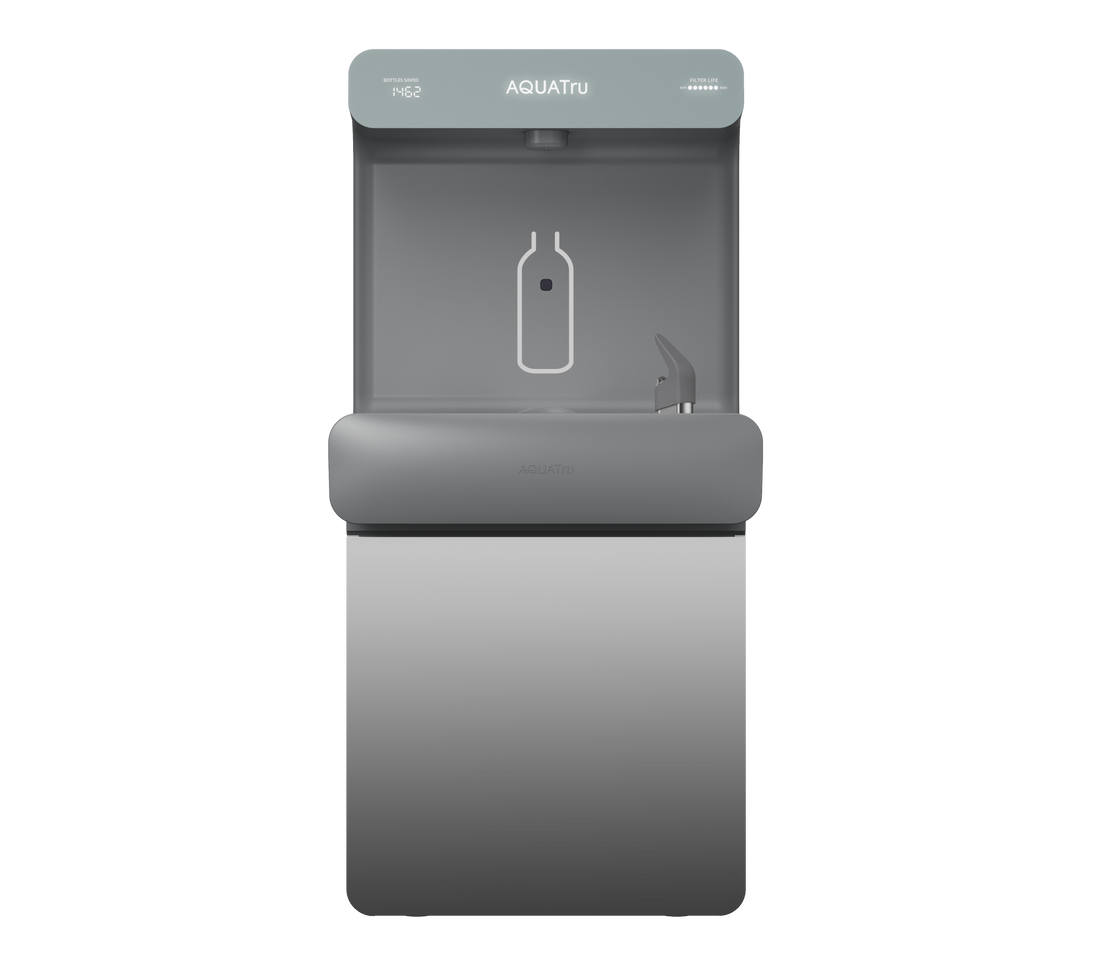

AquaTru Refrigerated On-Wall Bottle Filler with Bubbler System

AquaTru Refrigerated On-Wall Bottle Filler with Bubbler System

The On-Wall Bottle Filler with Bubbler is designed to be wall-mounted and dispense filtered, refrigerated water.

  • Mounting Type Wall-Mounted
  • Certified to NSF/ANSI
$1,599.00
Sold out

Enjoy special volume discounts for our B2B customers. Contact our Team

Color:
Gray
Dimensions:
20" X 18.75" X 40"
Power:
440w

Ships in 2-3 business days
View full details

Product Details

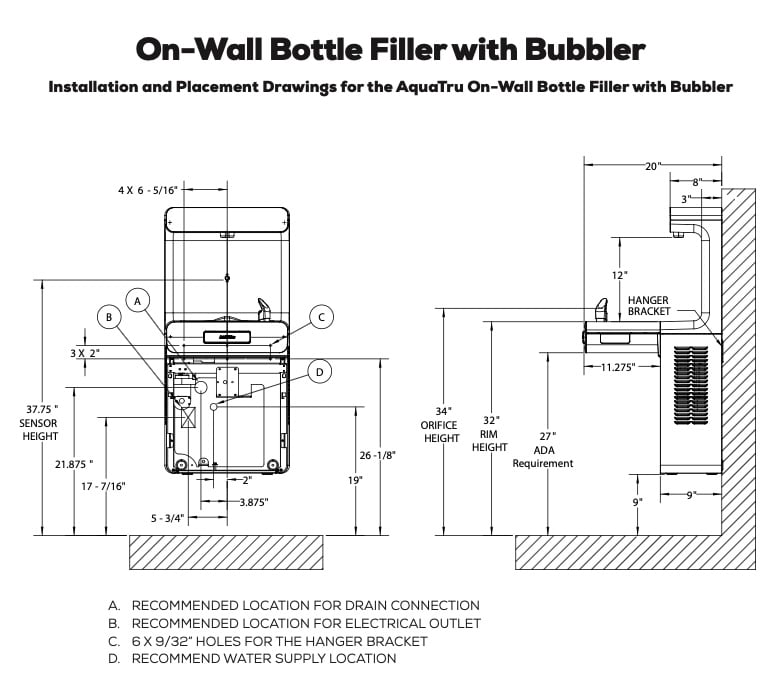

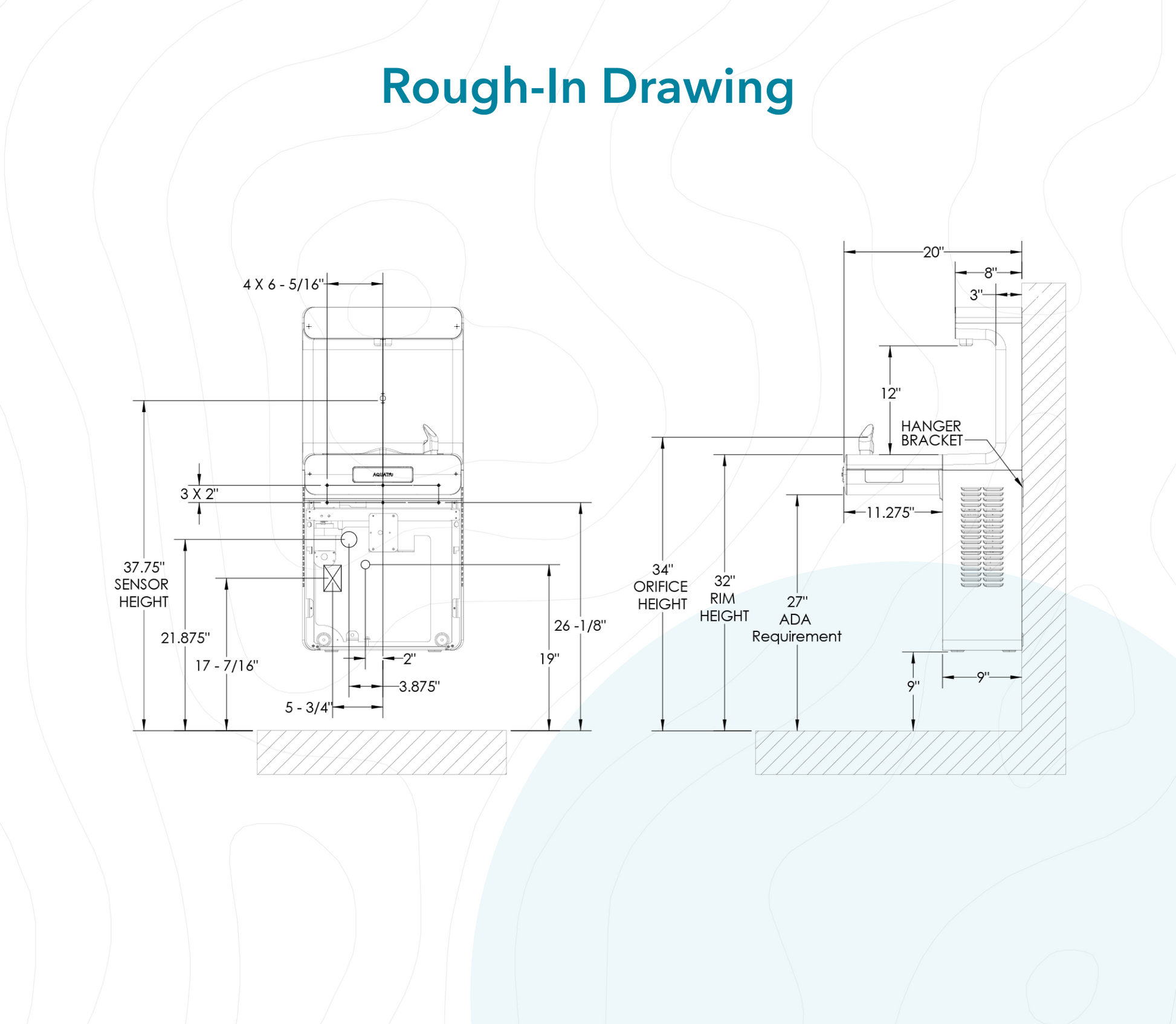

Diagrams

Specs

Water Refrigerated only
Filter Stages Sediment and Carbon
Finish Stainless Steel and Textured Plastic
Power 120 VAC 60hz
Activation by IR Sensors
No. of Stations Served 1
Mounting Type Wall Mounted
Chilling Capacity 9.5 GPH
Cooling Power 440W
Dimensions (L x W x H) 20" x 18.74" x 40"
Approx. Shipping Weight 70 lbs.
Installation Location Indoor and Outdoor while covered
Rated Flow Rate 1 GPM

Equivalencies

Brand: Elkay
Model: LZS8WSSK
Mounting Type: On-Wall
Brand: Murdock
Model: BF12R-BCD
Mounting Type: On-Wall
Brand: Oasis
Model: PG8EBF-SSA
Mounting Type: On-Wall

Benefits

On-Wall Bottle Filler Benefits

On-Wall Bottle Filler Benefits

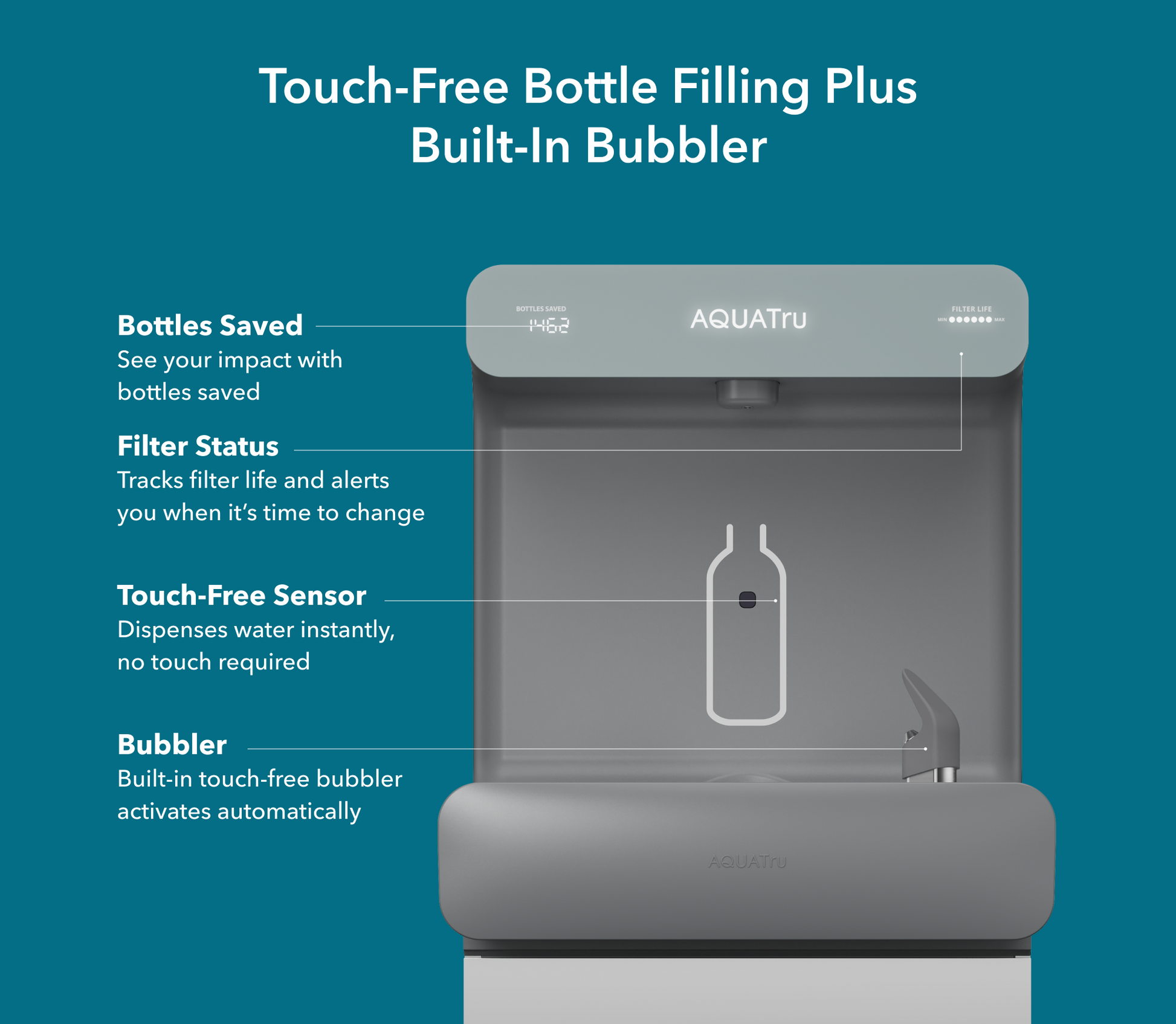

  • Delivers Chilled, Filtered, Healthy Water, Touch Free

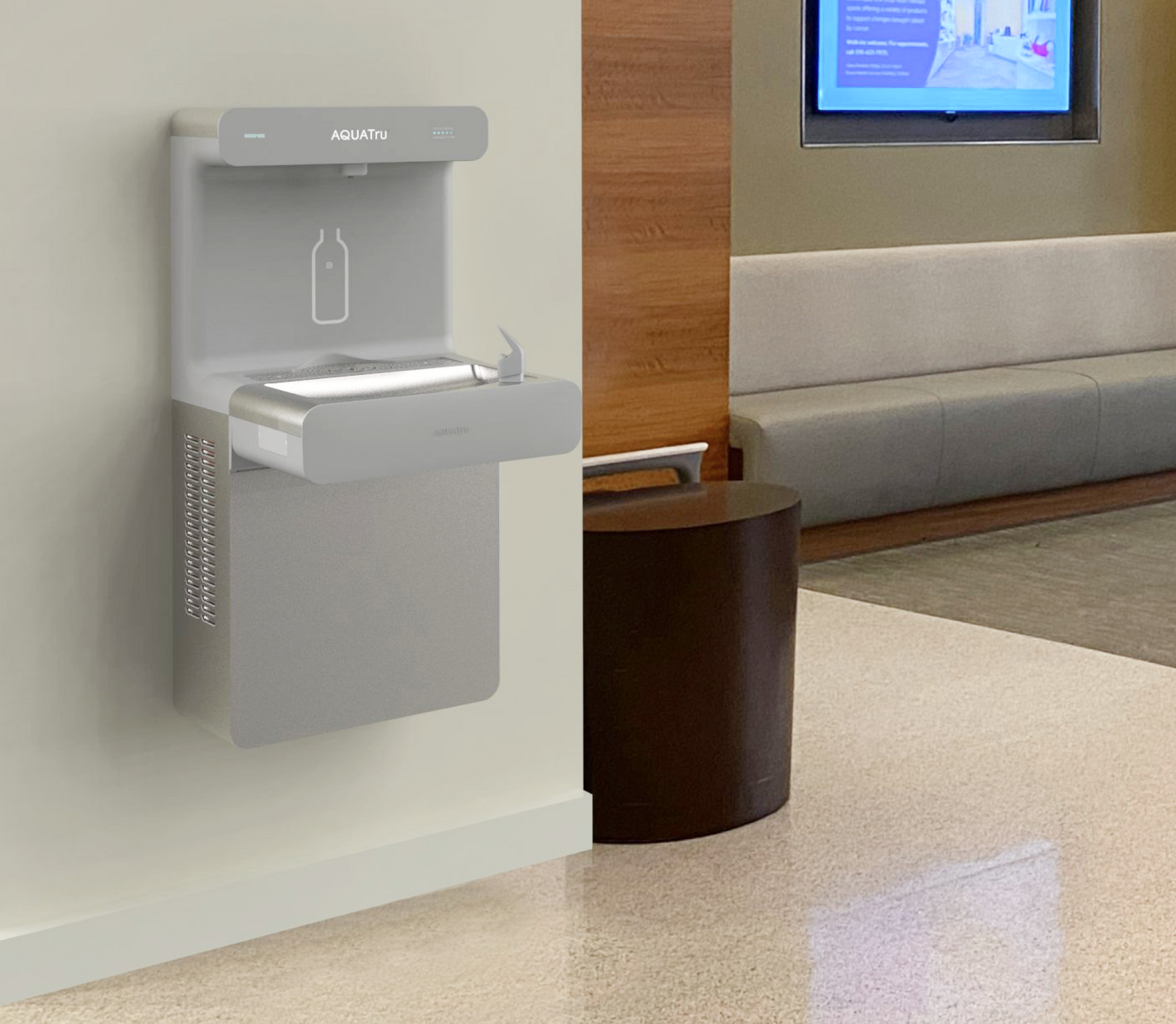

    AquaTru Pro Bottle Filler systems are ideal for applications with a high level of traffic such as educational and health & fitness facilities.

  • Trusted, Tested, Certified

    AquaTru Pro is certified: to UL 399 and NSF (42: Chlorine, Taste, and Odor) (53: Lead, PFAS, Cyst, Particulate Class 1) (372: Lead Free Construction) standards for product and water safety.

  • Self-Service Filter Change

    No fuss, DIY filter changing – visual filter monitor for convenient notification when filter needs replacement.

  • Optimum Energy Efficiency

    R290 Refrigerant provides colder water quicker and is much more sustainable than other refrigerant gases.

On-Wall

Learn How to Install your Unit

  • 1

    Unbox

    Manual, mounting bracket, drain tube hardware, filter and QR code installation instructions are included.

  • 2

    Assemble Tools

    You’ll need a drill (with Torx's T20 bit), screwdriver, level, measuring tape and adjustable wrench.

  • 3

    Install Your Unit

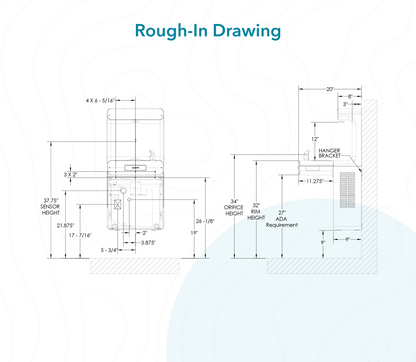

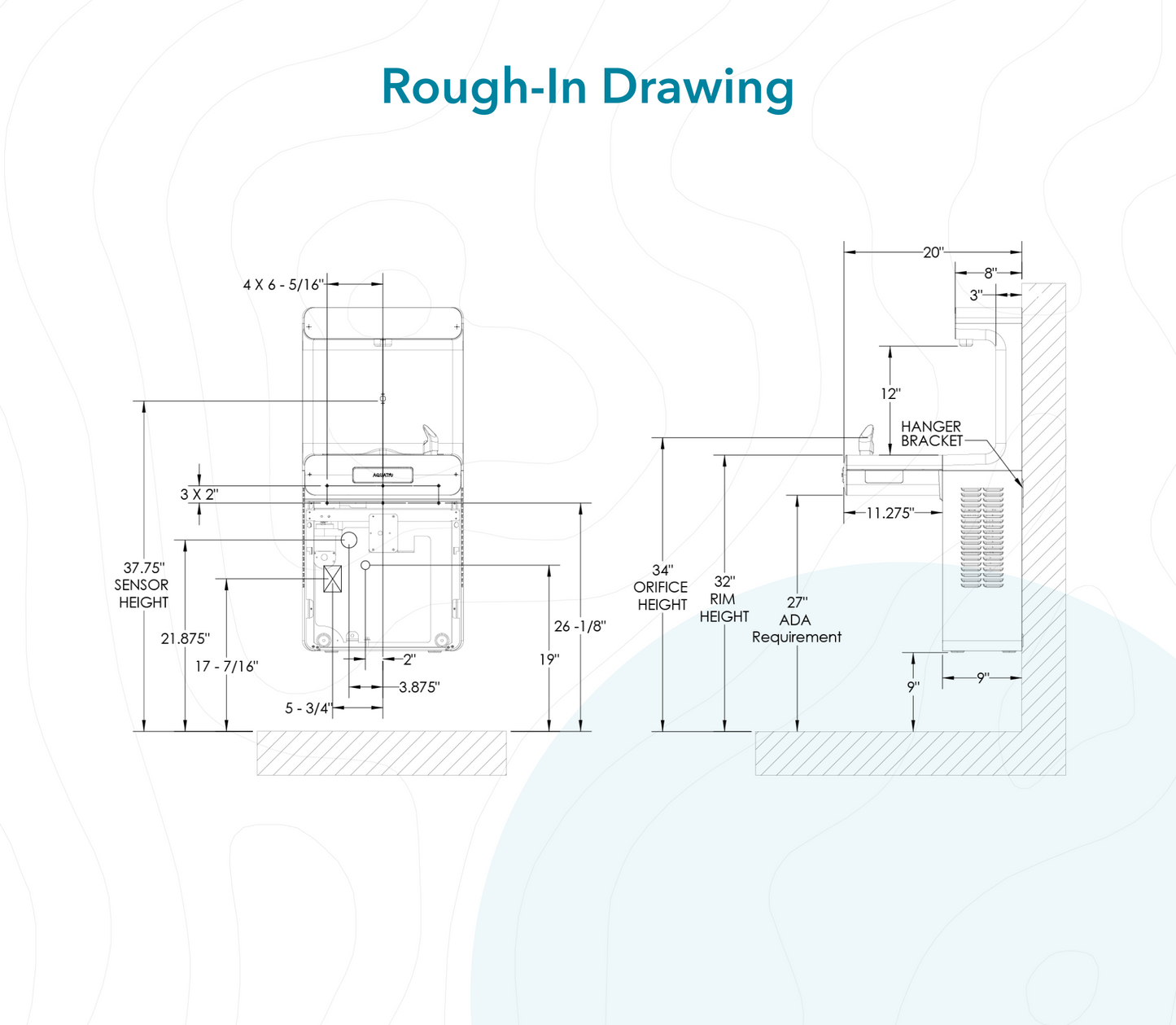

    Mount the bracket 43 ½ inches from the floor for ADA compliance & hang the cooler unit on the bracket.
View Installation Video

Our technology

Pure Water Made Easy

  • Up to 9.5 gallons per hour

    AquaTru Pro units can support smaller spaces as well as larger public venues.

  • Tasted & Trusted

    Over 96% of customers surveyed said AquaTru is the best water they've ever tasted.

  • Minimal Maintenance

    Once properly installed by a professional, AquaTru Pro can be easily maintained by anyone.

  • Readily Available Filters

    AquaTru Pro replacement filters are available to purchase through our website or Amazon.

Bottle Filler Comparison: Entry-Level Models

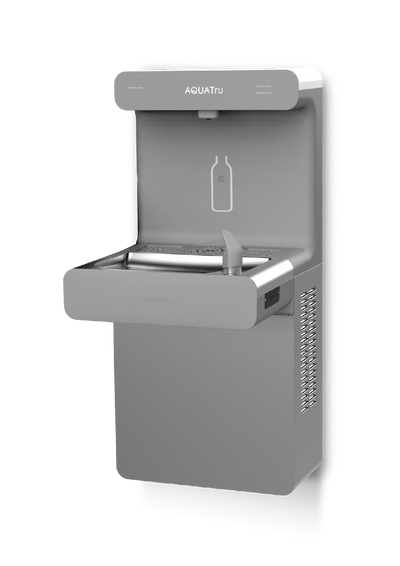

90AT01WF01B
Model Number 90AT01WF01B
Elkay

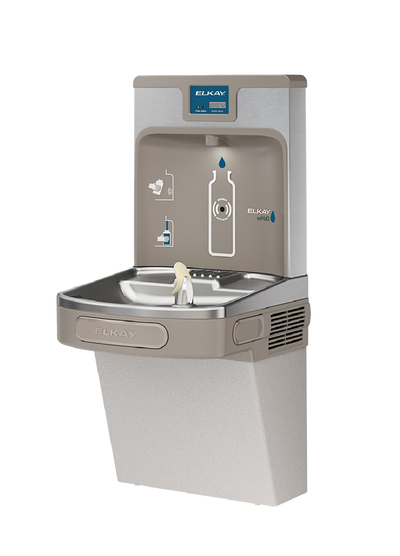

LZS8WSLK
Model Number LZS8WSLK
Halsey Taylor

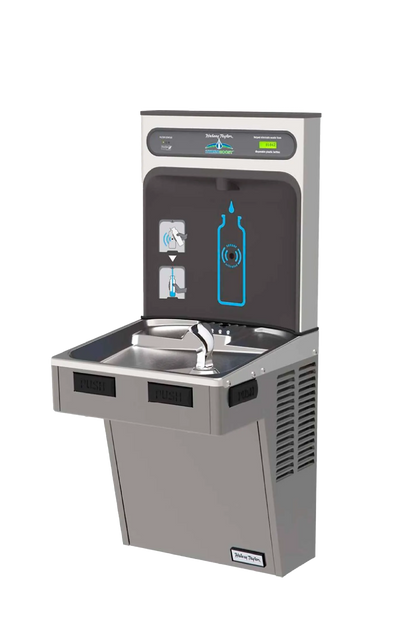

HTHB-HAC8PV-WF
Model Number HTHB-HAC8PV-WF
Murdock

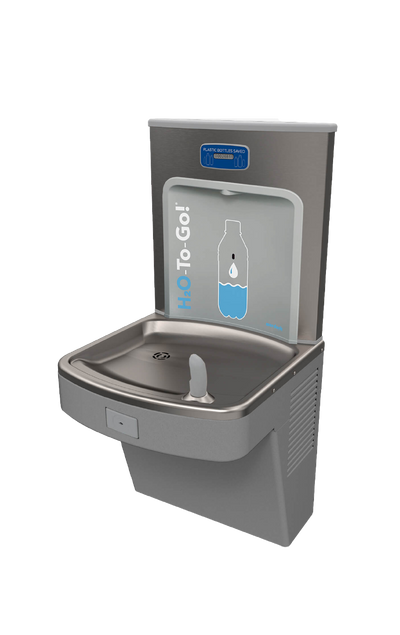

A171.8-UG-BF12
Model Number A171.8-UG-BF12
Oasis

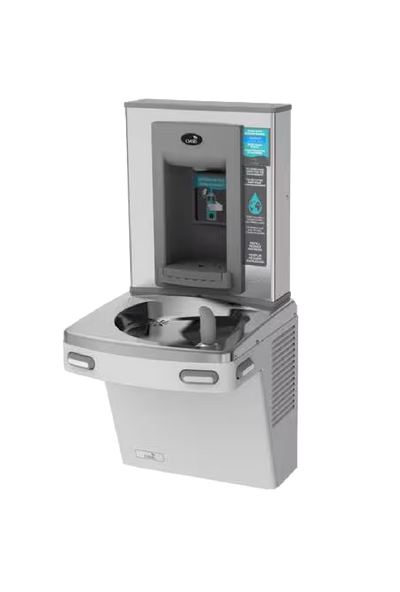

PG8SBF
Model Number PG8SBF
Chilling Capacity (GPH) 9.5 8 8 8 8
Real Flow Meter Filter Alerts
Reduces PFOA + PFOS in the standard filter
Easy to Install*
Touch-Free Bubbler Activation
Refrigerant: (Energy Efficient + Low Impact on Global Warming) R290 R134a R134a R134a R134a

* Larger opening on the On-Wall rear opening allows for easier installation and alignment including competitive crossover.
Comparisons based on publicly available specifications as of 8/17/25.

Downloads

Specification Sheet
390 KB
Product Manual
5.8 MB
Care Cleaning
382 KB
Warranty
120 KB
Performance Data Sheet
33.3 KB
BIM Files
5.4 MB

How to Specify

1

CODE COMPLIANCE?

AquaTru Pro makes specification simple. Our commercial water purifiers are designed for easy integration into your project. All units are UL listed and certified to NSF/ANSI standards for trusted performance. For your convenience, please use the specification, product manual, and performance data sheet above. Downloadable cut sheets, CAD files, and BIM models are also available.
2

HOW MANY UNITS?

Every space is unique. AquaTru Pro’s flexible system is designed to match. We offer a complete range of on-wall and free-standing dispensers that can be combined to meet the specific demands of your project. Tell us about your layout and capacity needs, and we'll help you design the perfect water solution.
3

OUR RESOURCES MAKE IT EASY

For your convenience, please use the specification sheets and downloadable cut sheets. CAD files, and BIM models are also available upon request.

FAQs

What are the dimensions of the On-Wall Bottle Filler with Bubbler?

L x W x H 18.5″ x 9.5″ 39.4″

What contaminants does the On-Wall Bottle Filler with Bubbler remove from tap water?

AquaTru Pro On-Wall units have been certified by a third party for the reduction of lead, chlorine, chloramine, microplastics, “forever chemicals” (PFOA + PFOS), and cysts.

Do I need a professional plumber for installation?

For the warranty to apply, this product must be installed by a licensed plumber.

What maintenance does the On-Wall Bottle Filler with Bubbler require?

Maintenance involves filter replacements. Filters use quarter-turn cartridges that can be replaced in under a minute. No tools or plumbing adjustments are needed for regular maintenance.

What is the lifespan of the filter?

The filter for the On-Wall units lasts approximately 12 months or 3000 gallons, depending on usage.

What is the flow rate?

The flow rate is 1 gallon per minute.
